Quick Details

  • Condition: New
  • Application: Sheet
  • Plastic Processed: PE
  • Screw Design: Single-screw
  • Automatic Grade: fully automatic
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: FC
  • Model Number: FCFPM-105
  • Voltage: Customized
  • Power(W): 100kw
  • Dimension(L*W*H): 23m*2.3m*2.2m
  • Weight: 8t
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: epe foam sheet production Line
  • Screw Speed: 5-45r/min
  • Screw L/D: 55:1
  • Screw material: 38CrMoAl
  • Foaming agent: Butangas or LPG
  • Raw material: LDPE

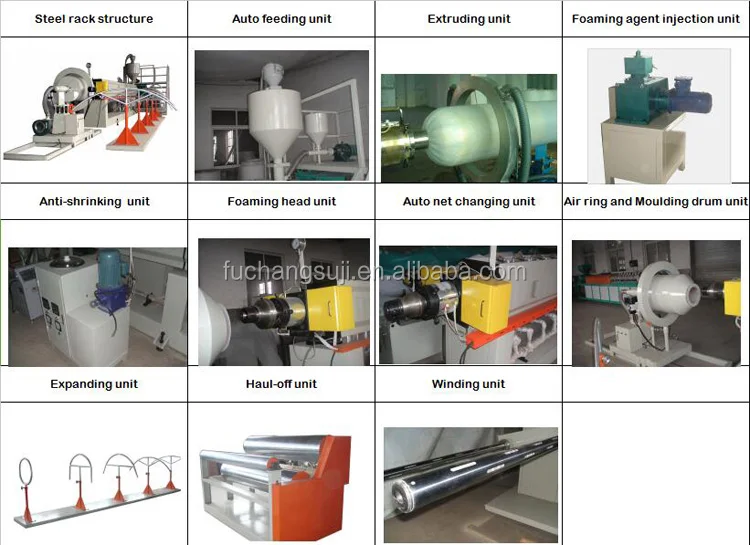

  • Main parts: feeder ,extruding machine ,haul-off system ,winding system
  • Cooling Method: air-cooled , water-cooled
  • Workers: 2-3 workers

Packaging & Delivery

Packaging Details Export Standard Package.
Delivery Time at least 40 days
Advaced Technology EPE Polyethylene plastic extruder FCFPM-105/PE film making machine/epe foam sheet production Line


Product Description







EPE Foam Sheet Extrusion Line



Product Introduction:
Polyethylene foam Sheet, also named as pearl cotton. It’s a kind of new –type packing material with the features of damp proof, shock proof, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials, and widely used in the packing of fruit, instruments, bags & luggage, shoe making,  household appliances, electronic product, hardware, furniture, fragile goods, etc. Features of this extrusion line: reliable quality, high output, low maintenance, high automation, easy handling with reasonable price



Features:
1.Automatic feeding material, equipped with automatic alarm system when lack of raw material
2.The cool method adopt air cooling & water cooling. The control of the temperature is steady and exact. The temperature is dropped quickly.
3. The filter changer system has two holes no stop, no cut off material. Automatic hydraulic screen changer, save time, can increase production to 10%.

4. Machine head control adopt diaphragm-type pressure gauge, guarantee the quality of sheet is steady.
5. The winding automatic change over, the length fix long .automatic counting, the longest width of rewinding can be 2.8m
6.There is an explosion-proof electric machine beside the butane gas pump to ensure the safety.



Main Technical Parameters:

Model

Unit

FCFPM-90

FCFPM-105

FCFPM-120

FCFPM-150

FCFPM-170

FCFPM-200

Extruder



90/55

105/55

120/55

150/55

170/55

200/55

Screw Speed

R/MIN

5-45

Foaming Ratio



10-40

Product Width

MM

800-1600

1000-2000

1000-2000

1000-2000

1000-2000

1000-2000

Product Thickness

MM

0.5-3.0

0.5-5.0

0.8-8.0

1.0-10.0

2.0-10.0

2-12.0

Cooling Method



Air-cooled, Water-cooled

Installed Power

KW

90

100

120

150

180

210

Dimension

M

20*2.3*2.2

23*2.3*2.2

25*2.3*2.2

30*2.3*2.2

32*2.3*2.2

34*2.3*2.2

Weight

T

6

8

12

15

17

19





Note: The above technical data is only for your reference and we keep the right for modification.

Packaging & Shipping

Outside Package:
Export standard packing.
Inner Package:
EPE stretch film with Wooden pacakge for long time ocean shipping.

Factory Profile



Longkou FuChang Packing Machinery Co.,Ltd is located in Longkou,Shandong .We are the professional manufacturer of packing machinery since 1995 especially in :

Paper Pulp Moulding Machine , Epe Foam Sheet Extruder ,Epe Foam Fruit Net/Pipe Extruder, PS Foam Sheet Extrusion Line, Fully Automatic Vacuum Forming Machine,etc.


Based on so many years abundant experience of producing the paper pulp molding machine and plastic packing machine, we already develop PLC control forming machine ,advanced multi layer drying line ,automatic packing system etc. Our factory has a perfect product quality, a high degree of mechanization ,technology precision and is trusted by customers. Our machines have exported to many countries ,such as Egypt ,Ghana, South Africa ,Uzbekistan, Thailand ,Iceland ,India ,Venezuela ,Vietnam and so on .We keep up the management concept of taking customer’s profit into first consideration ,helping customers reduce the production cost ,improving the quality of the products and offering the best after-sale service .


The people of Fuchang Company promise that we will constantly improve our products and pursue outstanding quality .Top after-sales service is our pledge.



We together with all world friends, work shoulder to shoulder ,cooperate sincerely, exchange business opportunities and create glories
